Jenkins构建GitHub合并请求(Pull Request)

本文最后更新于:2024年3月25日 中午

在我的文章“Git合并请求(pull/merge request)的本质”中已经说明了合并请求(pull/merge request)在代码层面上实际是Git仓库中的一个特殊分支,它指向了私有分支和主分支临时合并后产生的合并提交(merge commit)。如果我们能够在这个合并请求(pull/merge request)被真正合并进主分支之前对它做一次构建,就能尽早发现私有分支上的代码是否有问题,从而将问题拦截在主分支之外,减少主分支上持续交付流水线的失败率。对合并请求(pull/merge request)的构建除了编译代码(必要时可增量编译)和单元测试外,还可以增加更多额外的检查,比如代码的静态扫描。业界把这个放在持续交付流水线之前的检查称为preflight流水线(可参考《Continuous Delivery》这本书第三章67页对preflight构建的详细介绍)。本文将介绍如何配置Jenkins和Github来构建Github合并请求(Pull Request)。

配置Jenkins

安装Github Pull Request Builder插件

  1. 点击Jenkins -> Manage Jenkins -> Manage Plugins打开Plugin Manager页面

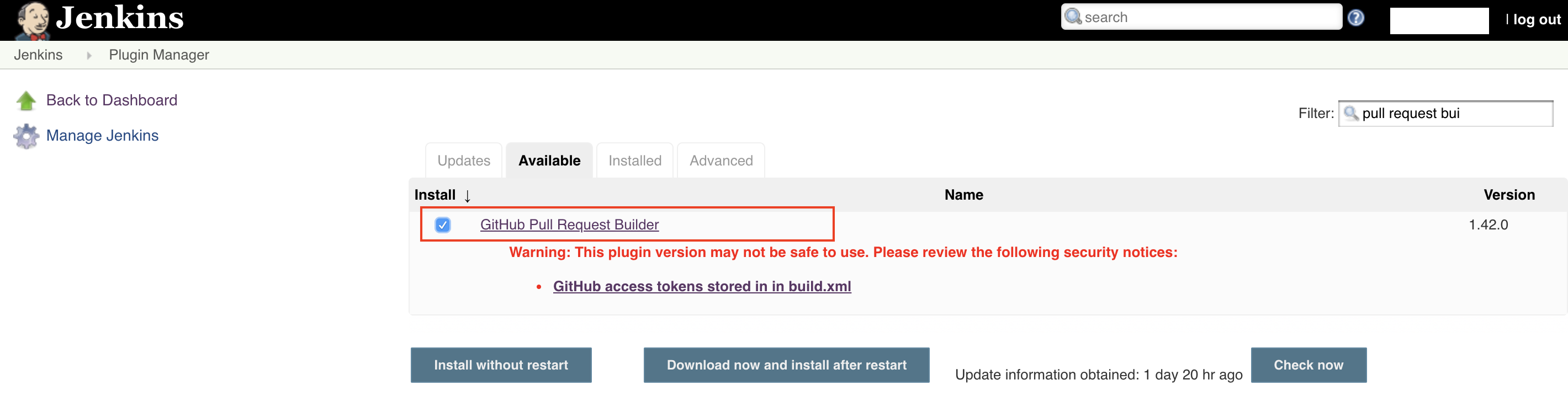

  2. 打开Available页面,选择Github Pull Request Builder,点击Install without restart按钮

  3. 必要时重启Jenkins让插件生效

配置Github Pull Request Builder插件

  1. 点击Jenkins -> Manage Jenkins -> Config System打开系统配置页面

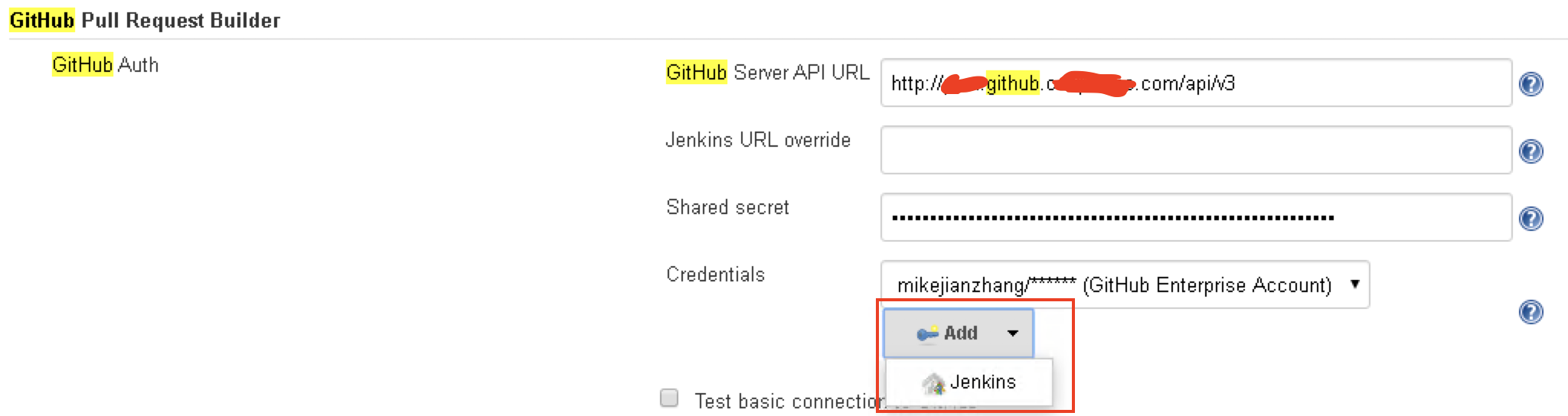

  2. 定位到”Github Pull Request Builder“插件,点击Add菜单打开创建Jenkins认证信息对话框

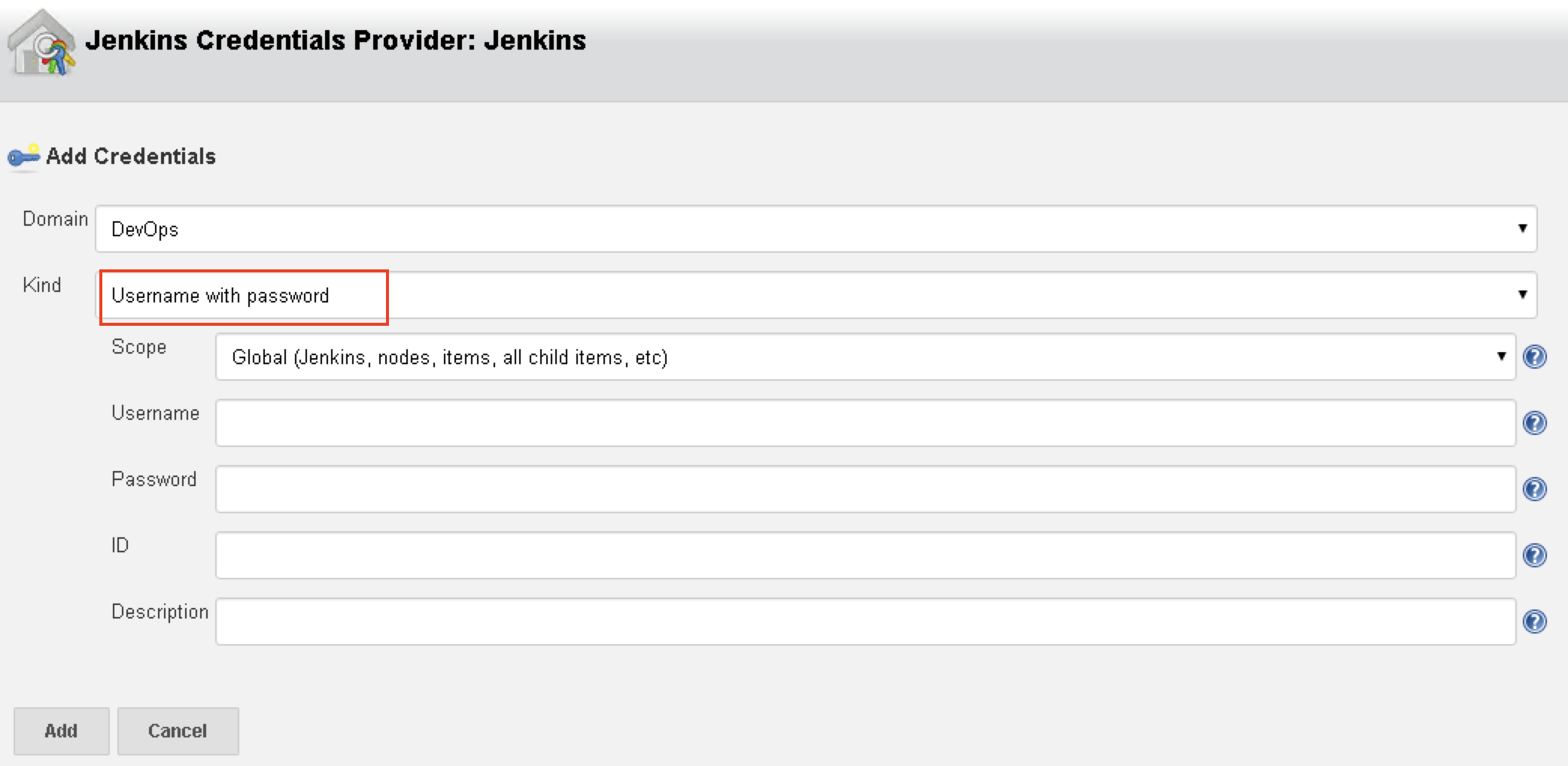

  3. 创建”Username with password”类型的凭证,用户名和密码是有足够权限的Github账号和密码

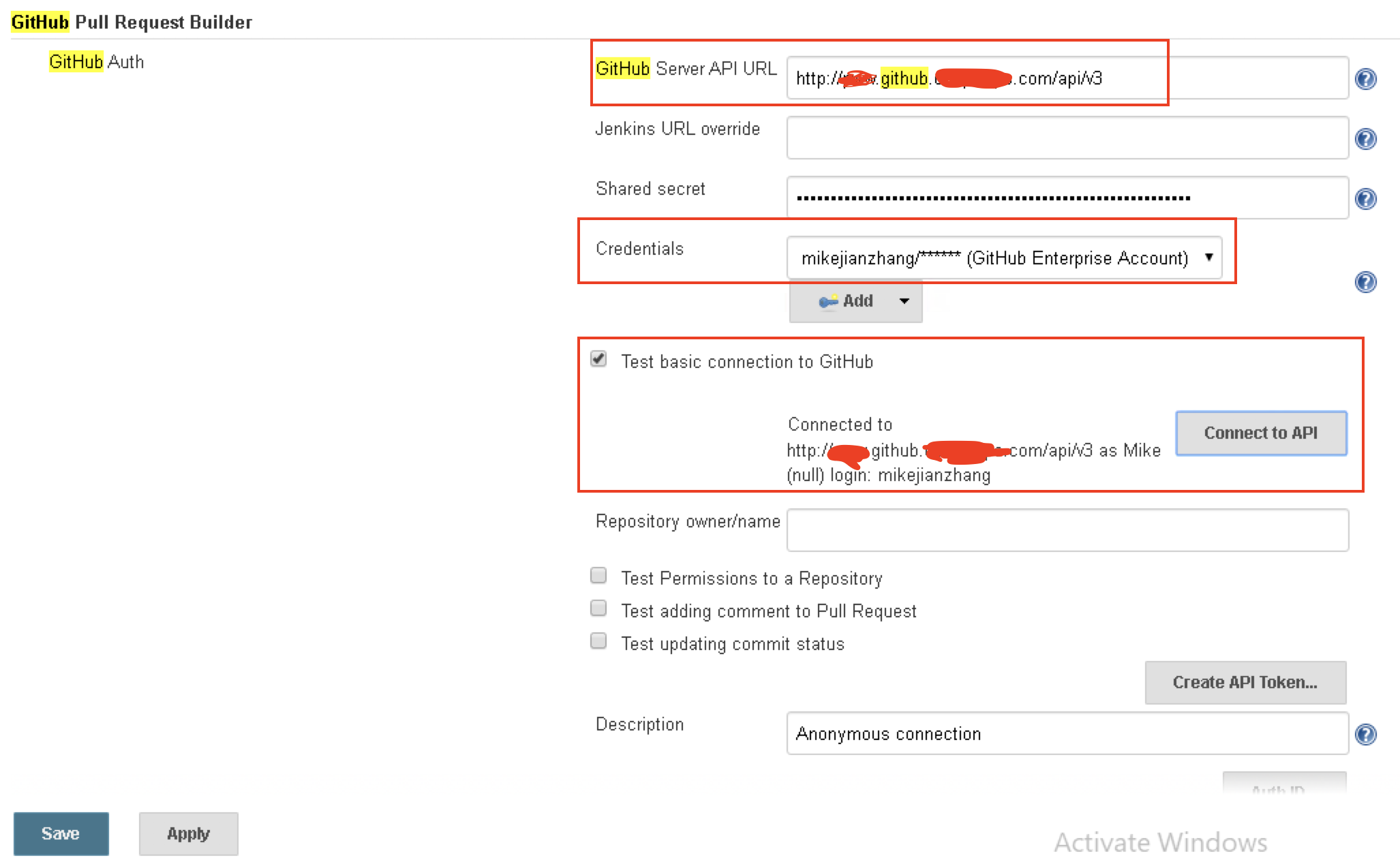

  4. 配置GitHub Server API URL,选择步骤3创建的凭证,可以点击”Connect to API”按钮测试基本连接

    对于GitHub Server API URL的值,GitHub和GitHub Enterprise是有区别的:

    GitHub ServerAPI Endpoint说明
    GitHub Enterprisehttp(s)://[hostname]/api/v3
    GitHubhttps://api.github.comReceive the v3 version of the REST API.
  5. 点击”Save”按钮保存配置

配置Github代码仓库

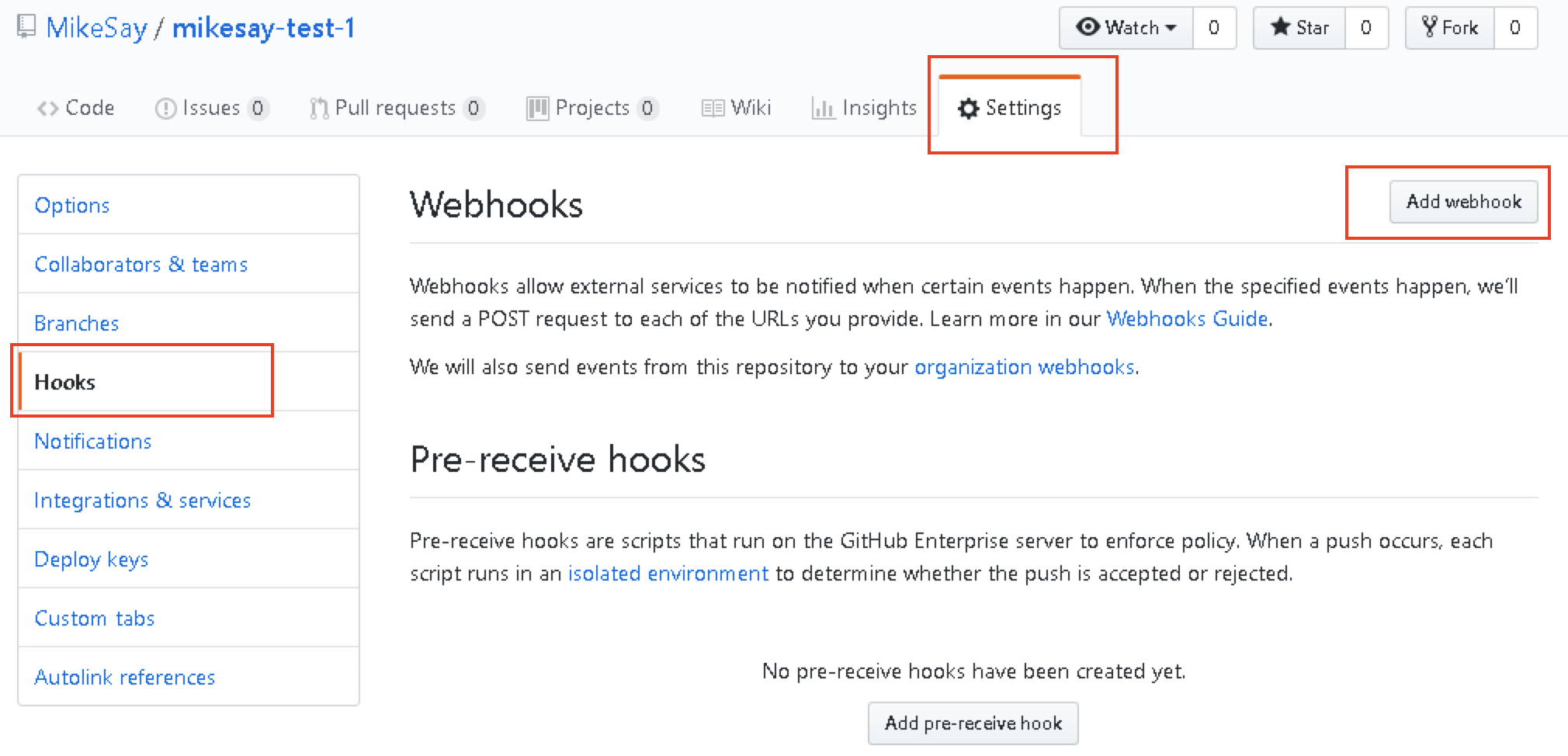

  1. 打开Git仓库设置页面,点击Hooks -> Add webhook

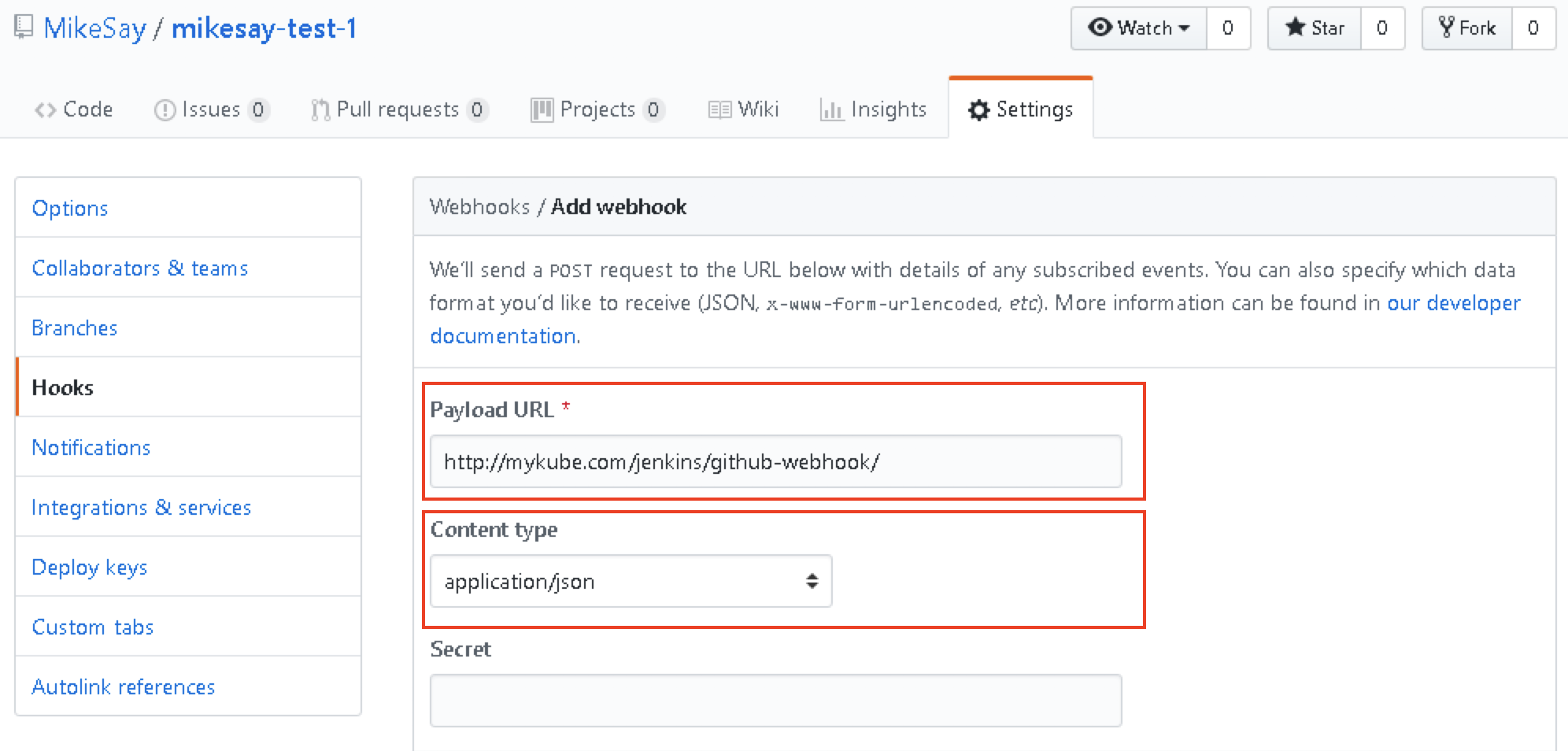

  2. 输入Palyload URL(http://jenkins-url/github-webhook/),选择Content Type为application/json

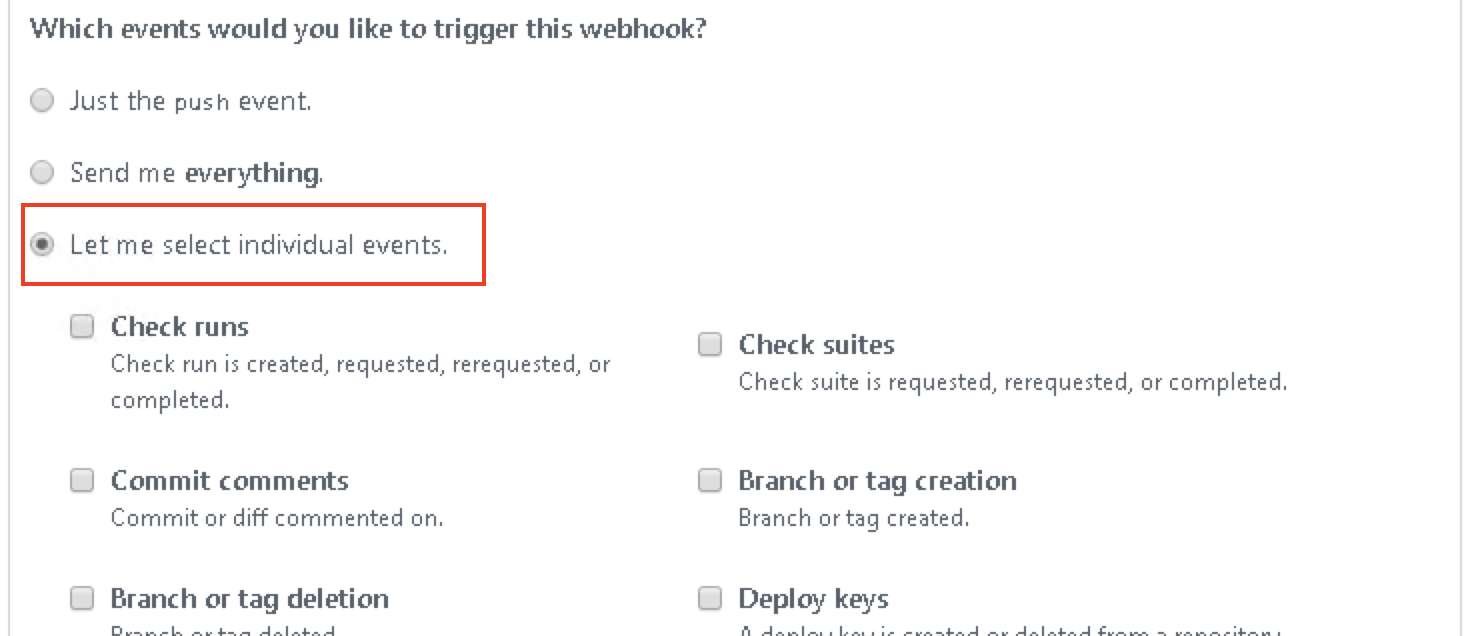

  3. 选择”Let me select individual envents”自定义webhook触发事件

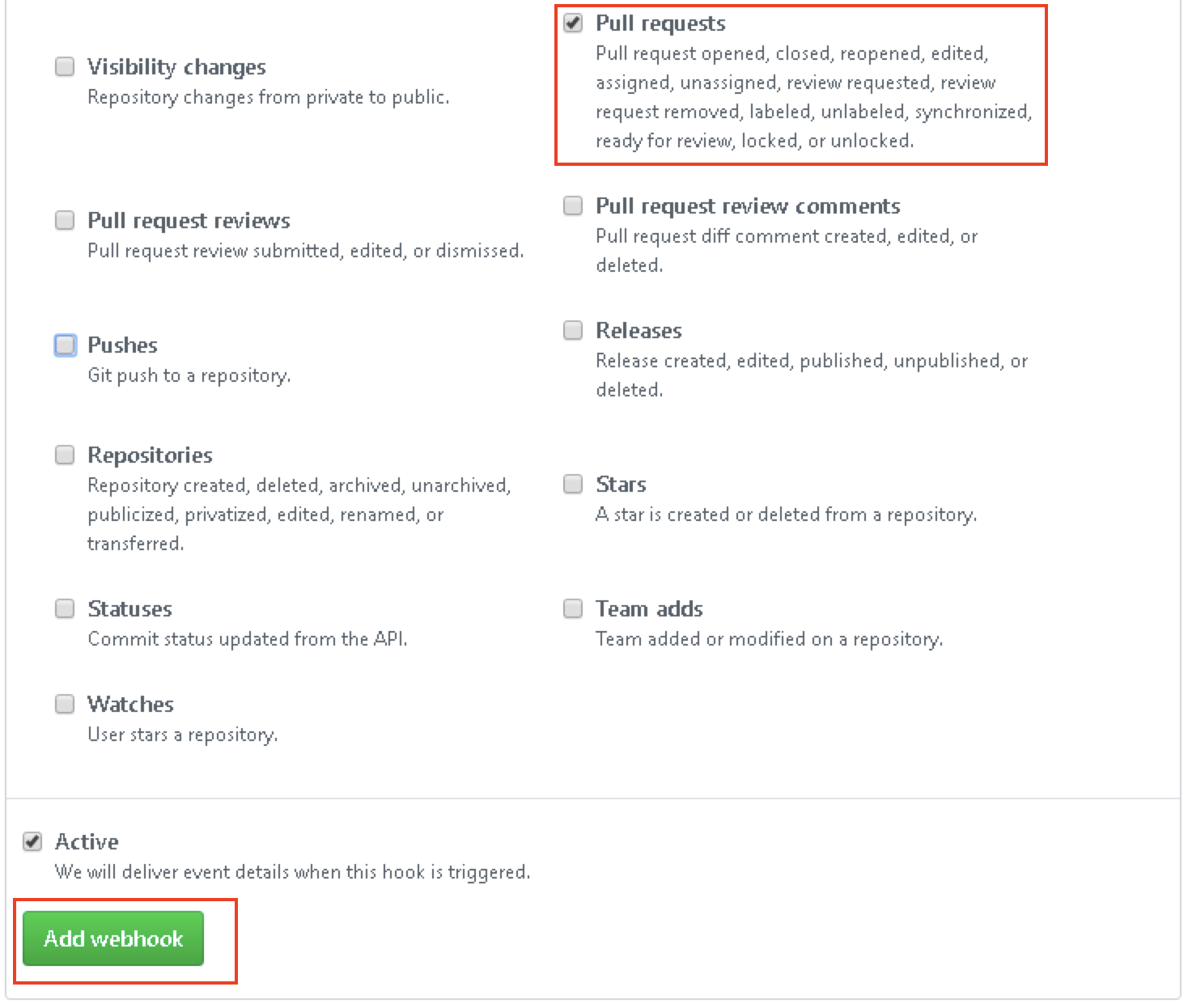

  4. 只选择”Pull requests”事件,并点击”Add webhook”保存Webhook

创建Jenkins pipeline job用来构建合并请求(pull/merge request)

Jenkinsfile

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
pipeline {
agent {
label 'common'
}
environment {
GITHUB_URL = "http://xxx.github.xxxx.com"
GITHUB_ORG = "MikeSay"
GITHUB_REPO = "mikesay-test-1"
}
options {
skipDefaultCheckout()
ansiColor('xterm')
}
stages {
stage('Checkout') {
steps {
script{
def scmVars = checkout(
[$class: 'GitSCM', branches: [[name: "${ghprbActualCommit}"]],
doGenerateSubmoduleConfigurations: false,
submoduleCfg: [],
extensions: [
[$class: 'RelativeTargetDirectory', relativeTargetDir: 'codes'],
[$class: 'CleanBeforeCheckout']
],
userRemoteConfigs: [
[
credentialsId: 'ghe_account',
name: 'origin',
refspec: '+refs/pull/*:refs/remotes/origin/pr/*',
url: "${GITHUB_URL}/${GITHUB_ORG}/${GITHUB_REPO}.git"
]
]
]
)
env.GIT_BRANCH = "${scmVars.GIT_BRANCH}"
env.GIT_COMMIT = "${scmVars.GIT_COMMIT}"
}
}
}
stage('Build') {
steps {
dir('codes') {
sh '''#!/bin/bash -l
echo "Start building!"
cat README.md
'''
}
}
}


}
post {
always {
junit allowEmptyResults: true, testResults: 'codes/build/test-results/test/**/*.xml'
// send to email
emailext(
subject: '$DEFAULT_SUBJECT',
body: '$DEFAULT_CONTENT',
recipientProviders: [
[$class: 'CulpritsRecipientProvider'],
[$class: 'RequesterRecipientProvider'],
[$class : 'DevelopersRecipientProvider']
],
replyTo: '$DEFAULT_REPLYTO',
to: '$DEFAULT_RECIPIENTS'
)
}
}
}

30行: 添加refspec获取合并请求(pull/merge request)的分支信息

1
refspec: '+refs/pull/*:refs/remotes/origin/pr/*'

19行: branches选择环境变量”ghprbActualCommit”,它是合并请求(pull/merge request)分支对应的提交号

1
[$class: 'GitSCM', branches: [[name: "${ghprbActualCommit}"]]

除了”ghprbActualCommit”外,github pull request builder插件还往当前构建中注入了许多变量供构建Job使用,如下表:

变量事例值说明
sha1origin/pr/6/merge合并请求(pull/merge request)分支。在构建Job中也可以用${sha1}来代替${ghprbActualCommit}
ghprbAuthorRepoGitUrlhttp://xxxx.github.xxxx.com/MikeSay/mikesay-test-1.git合并请求(pull/merge request)所在仓库的http地址
ghprbPullId6合并请求(pull/merge request)的ID号
ghprbTargetBranchmaster合并请求(pull/merge request)的主分支
ghprbSourceBranchtest9合并请求(pull/merge request)的私有分支
ghprbPullTitleTest9.合并请求(pull/merge request)的标题
ghprbPullLinkhttp://xxxx.github.xxxx.com/MikeSay/mikesay-test-1/pull/6合并请求(pull/merge request)的http地址

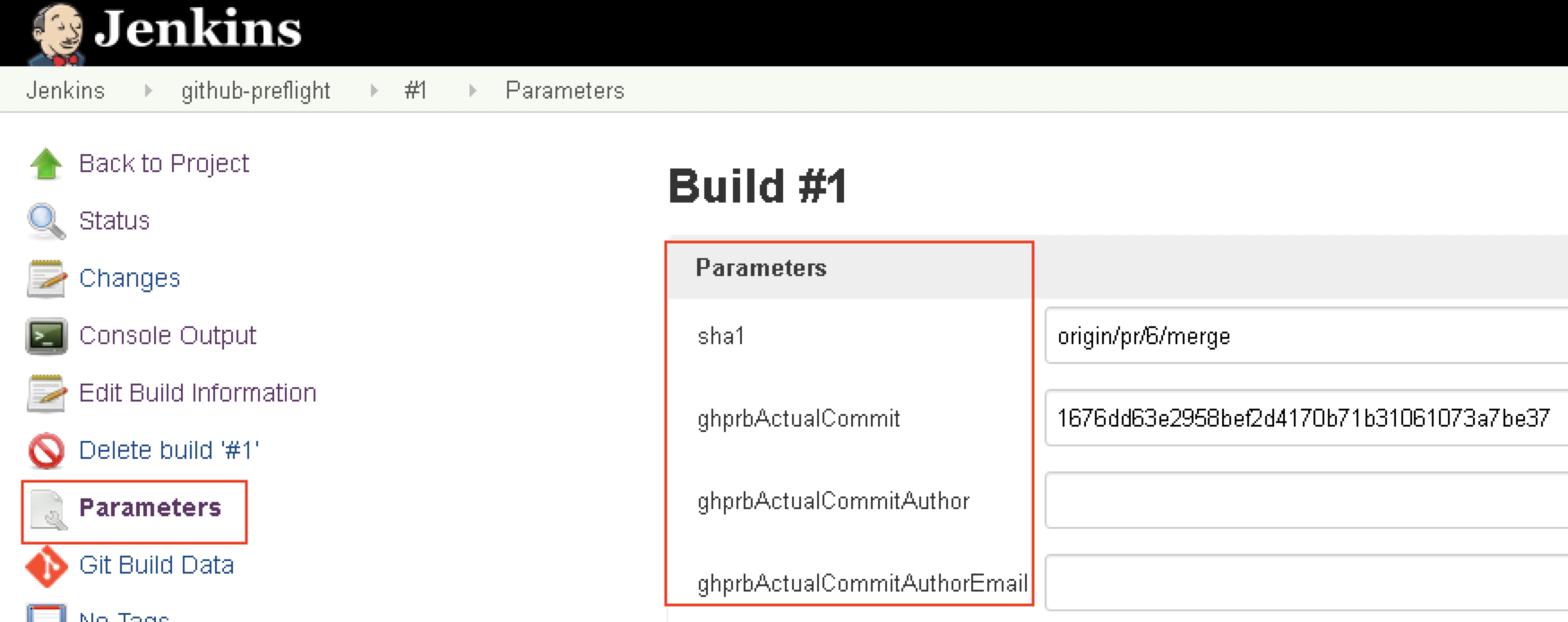

可以从当前合并请求(pull/merge request)的构建参数中获得所有变量名和当前值:

创建Jenkins job引用Jenkinsfile

  1. 点击”New Item”

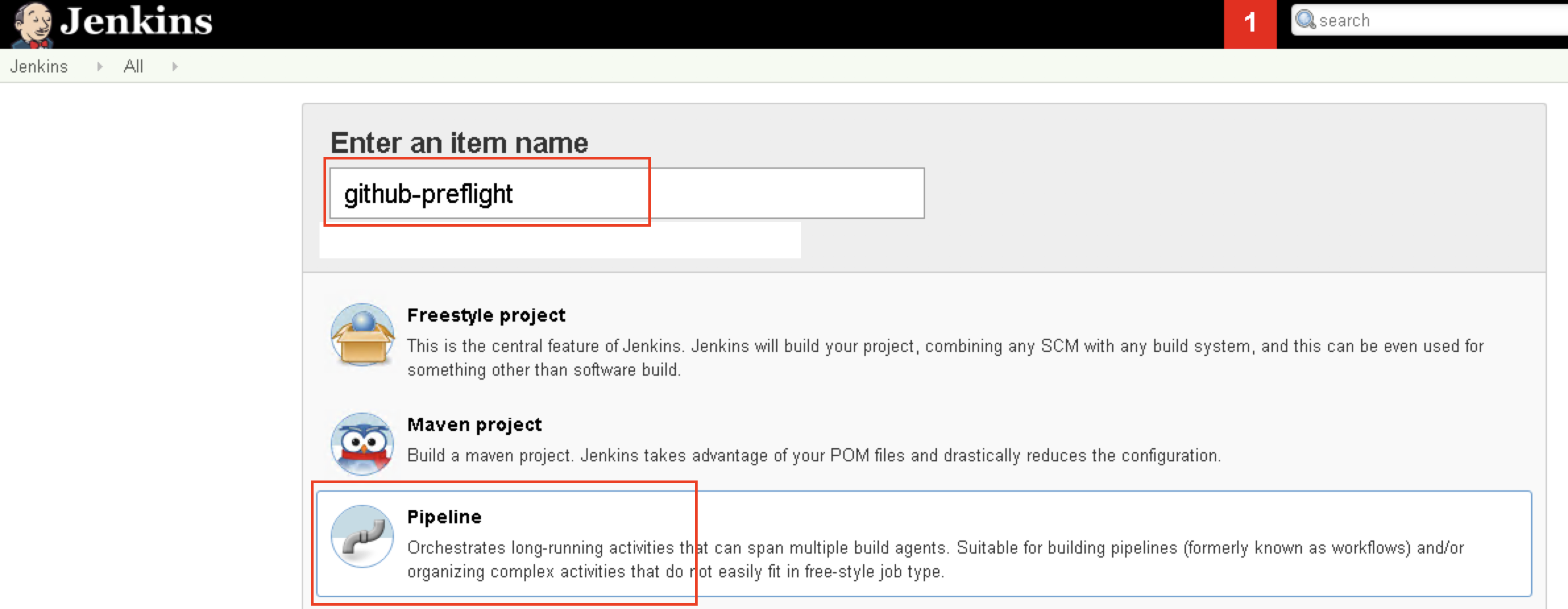

  2. 选择Job类型为”Pipeline”,输入Job的名字”github-preflight”,点击”Ok”按钮

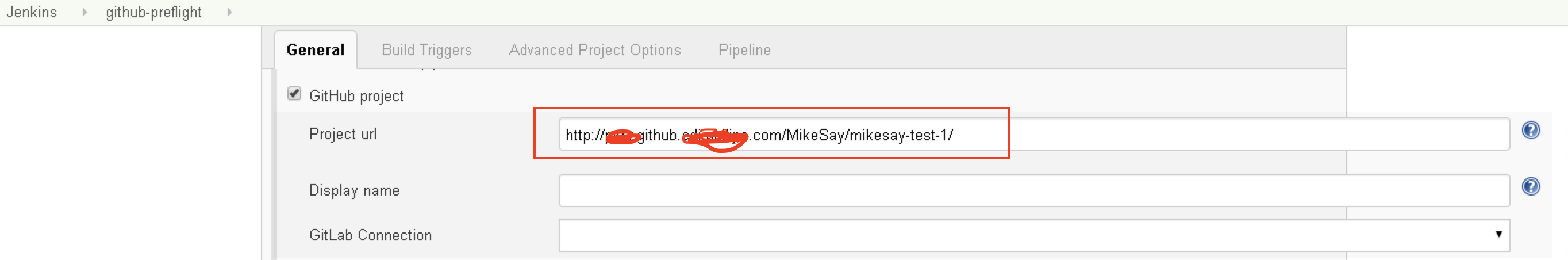

  3. 在”GitHub Project”段,输入”Project url”。注,”Project url”是Git仓库的http地址去除”.git”后缀

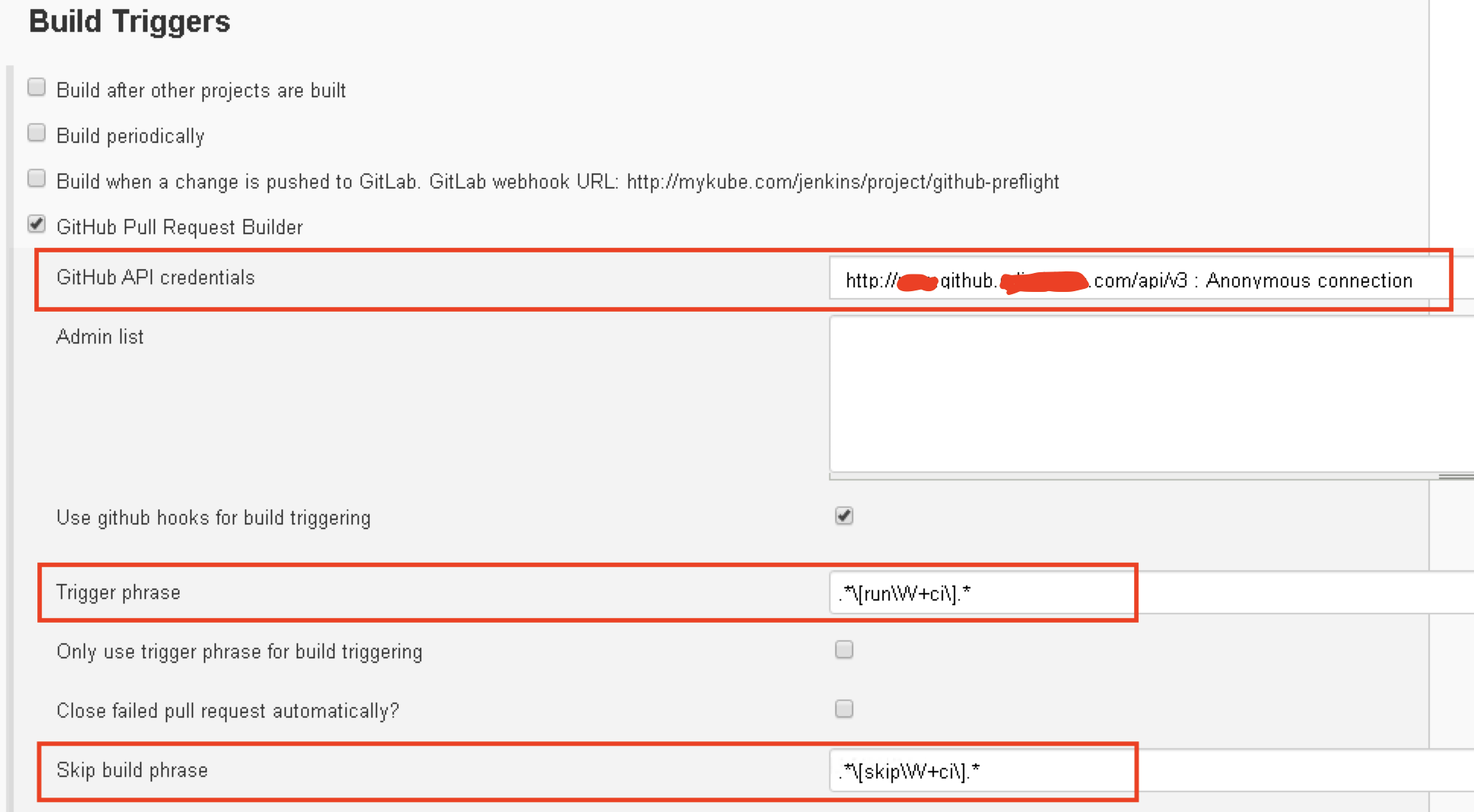

  4. 在”Build Triggers”段,选择”GitHub Pull Request Builder”

    • GitHub API credentials: 之前配置的GitHub API
    • Trigger phrase: 在合并请求(pull/merge request)的注释或标题里加入trigger phrase内容会自动触发新的构建
    • Skip build phrase: 在合并请求(pull/merge request)的注释或标题里加入skip build phrase内容则不会触发构建

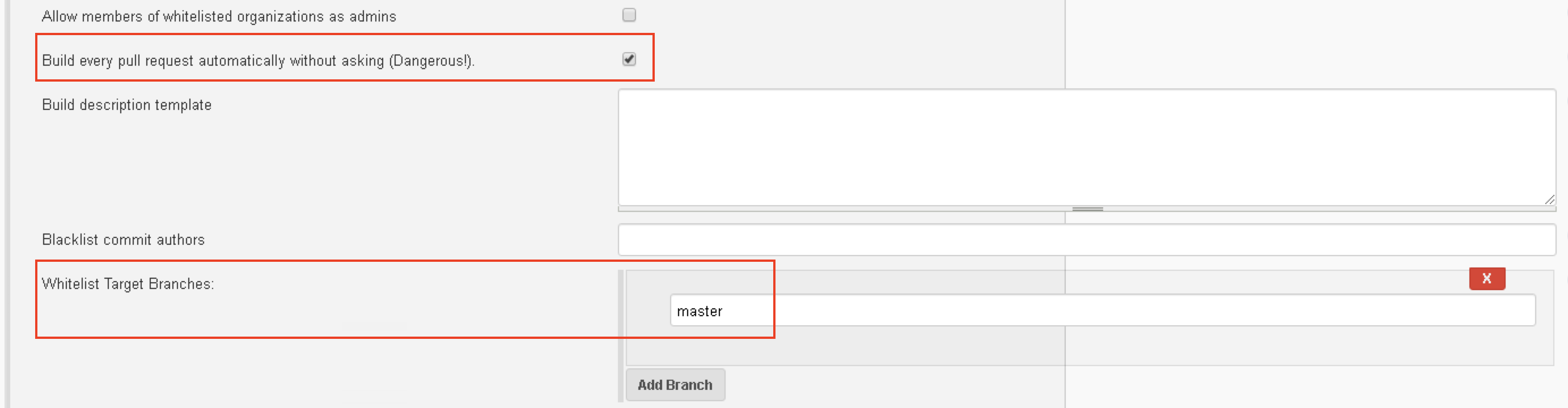

  5. 如果需要构建每个合并请求(pull/merge request),勾选”Build every pull request automatically without asking (Dangerous)”,在”Whitelist Target Branches”输入主分支”master”

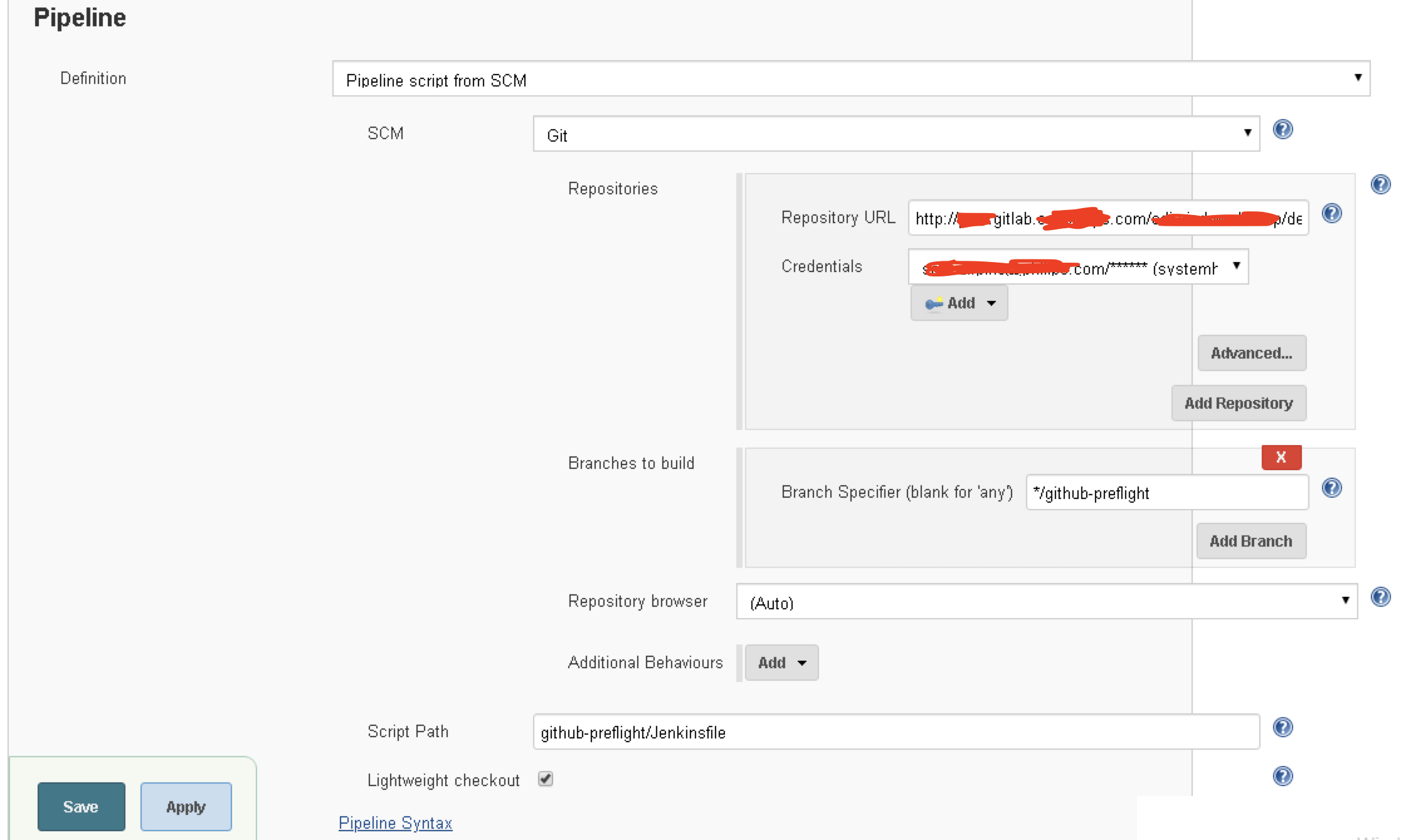

  6. 在”Pipeline”段,引用Jenkinsfile

创建合并请求(pull/merge request)触发构建

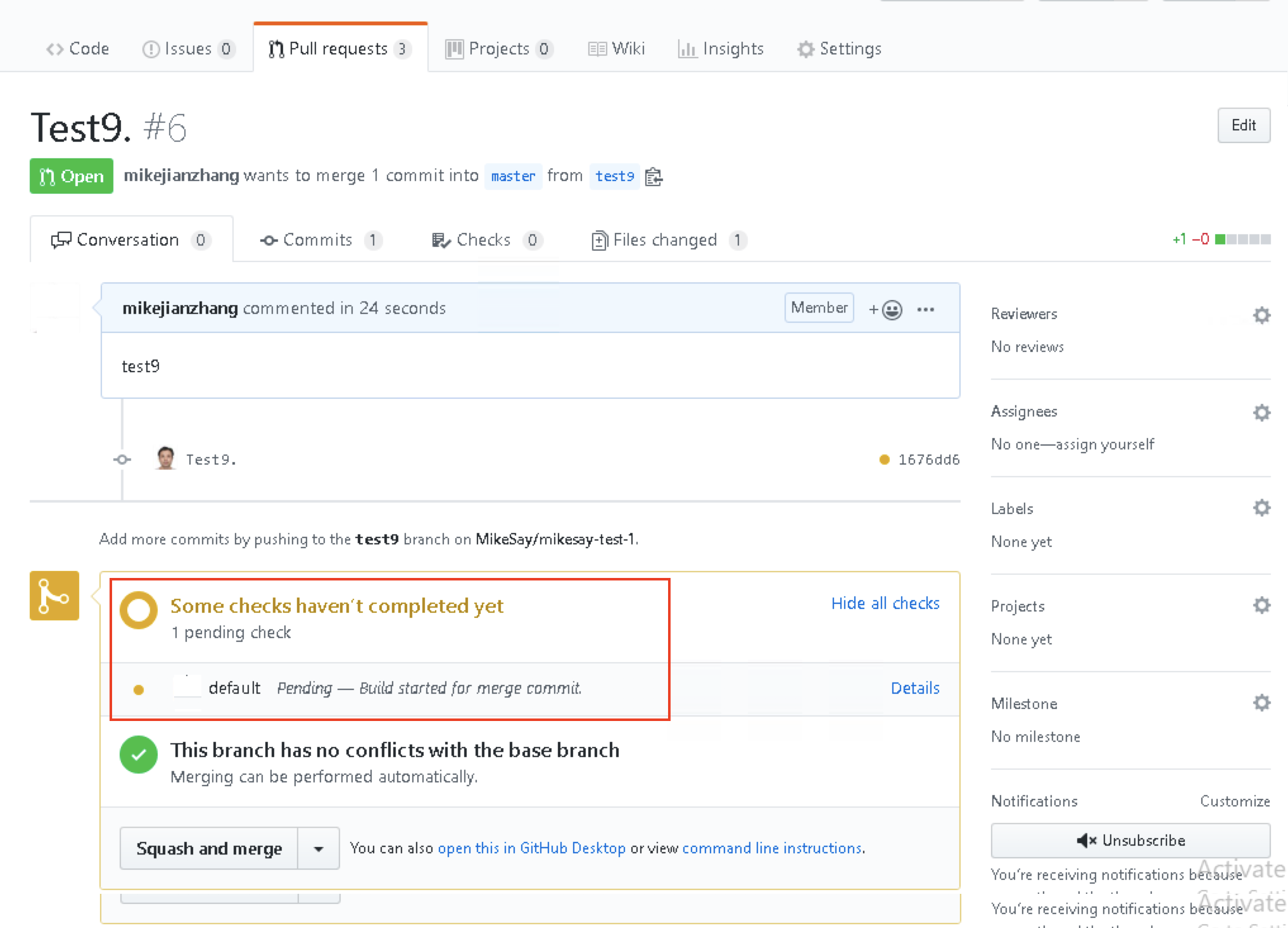

  1. Github的合并请求(pull/merge request)

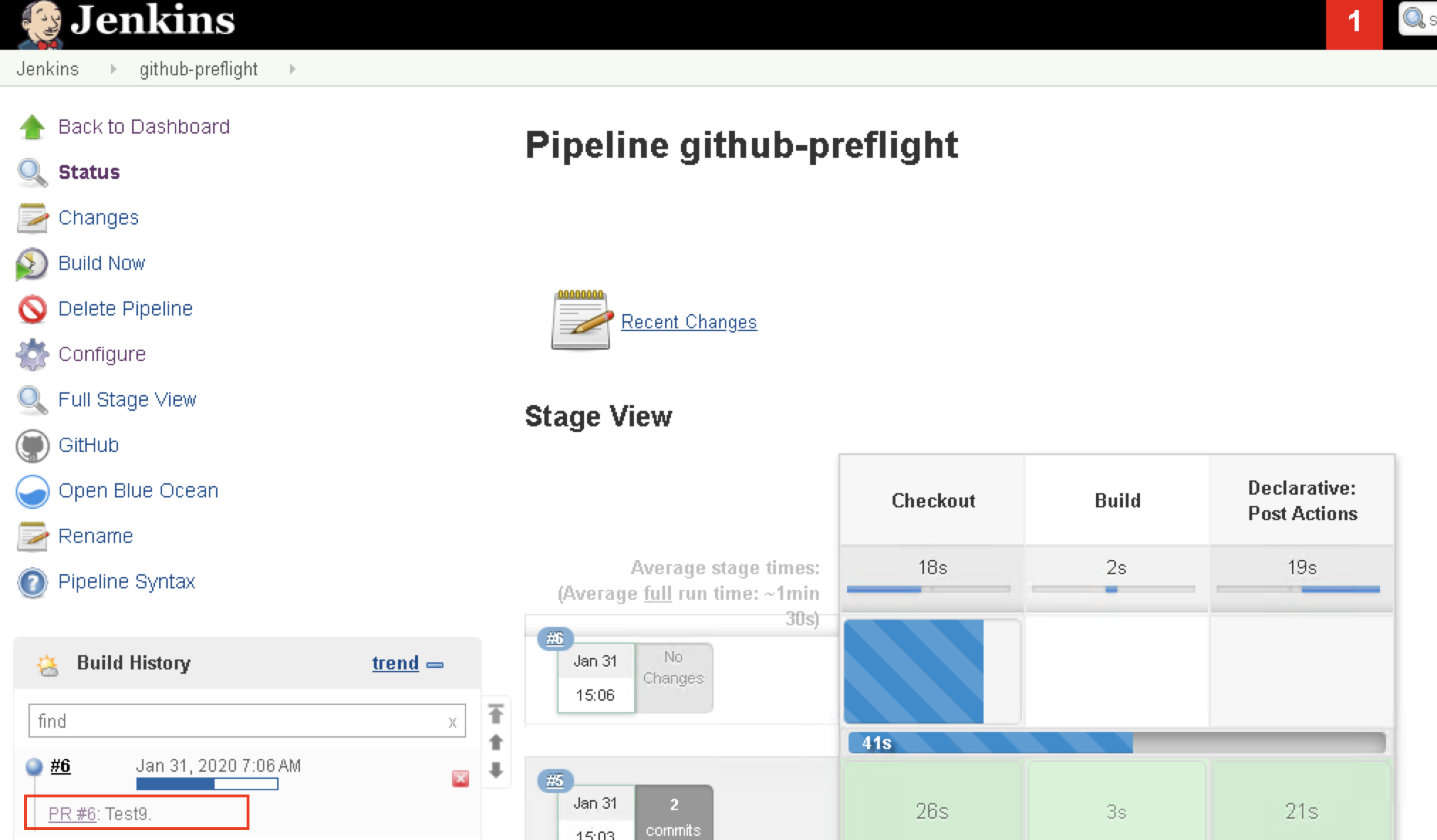

  2. 触发的构建
